ALM Busy mmMidi Rev2

MUSICAL FEATURES

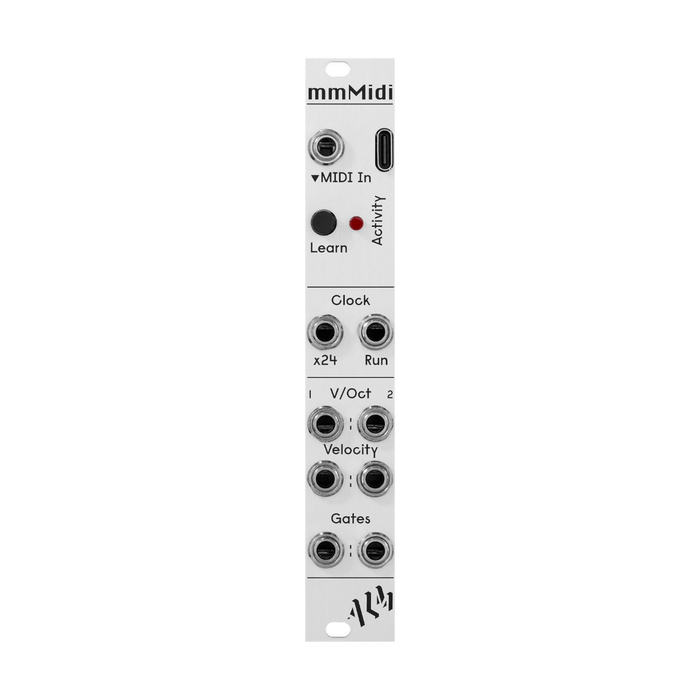

mmMidi is a compact MIDI to CV module. It can convert MIDI clock and MIDI note and velocity for two MIDI channels into CV or gate and output them. The clock is 2PPQ (24 times per quarter note) and the Run signal is also output, so you can patch the two to Pamela's New Workout's Clock and Run to control synchronization and start and stop. Rev24 has a USB-C connector and is recognized as a USB MIDI device without the need for a driver.

• Converts 2-channel MIDI notes to velocity, gate, pitch, and outputs
• Converts MIDI clock to analog clock and outputs
• Easy to use with simple settings
• Comes with a TRS-DIN (Type B) adapter that converts normal Din connector MIDI to 3.5mm. Also supports USB MIDI.
• Firmware update by uploading SysEx
• mmT expander allows you to output the gate from different jacks for each note

HOW TO USE

The only setting you need to make before using mmMidi is to decide which MIDI channel to use with mmMIDI. Press and hold the Learn button to enter the channel setting mode. Send a MIDI note 3 times using a MIDI keyboard. The LED blinks faster each time you send a note, and you exit the Learn mode the third time. The channel of the MIDI note sent the first time becomes the channel to be converted by CH3 of mmMIDI. The channel of the MIDI note sent the second time becomes the channel to be converted by CH1 of mmMIDI. The channel of the MIDI note sent the third time becomes the channel to be converted by mmT. You can check the settings in the video below.
