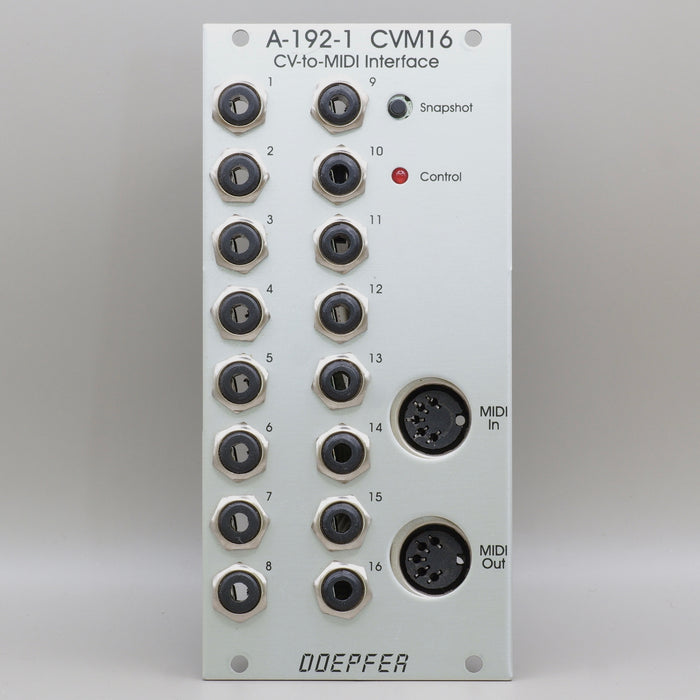

Doepfer A-192-1 Voltage-to-MIDI Interface CVM16 [USED:W0]

Name: Doepfer A-192-1 Voltage-to-MIDI Interface CVM16 [USED:W0]
Brand: Doepfer
SKU: A-1VOLINTCVM1-12563
Price: 9900 JPY
Availability: InStock

DOEPFER

USED

¥9,900 (Tax excluded ¥9,000)

CV to MIDI interface module that can also be merged with MIDI

MIDI Converter

Format: Eurorack
Width: 10HP
Depth: 95mm
Current: 10mA @ + 12V, 10mA @ -12V, 50mA @ 5V
Manual PDF (English)

[This is a used product]
Warranty: None (only for initial defects within 1 week of receiving)
Accessories: Power cable, M3 screw
Remarks:

Qty / qty

in stock. Used items may take 1-2 business days to ship. Not eligible for free overseas shipping

MUSICAL FEATURES

The A-192-1 module is a CV (Control Voltage) to MIDI interface. This module converts 0 control voltages in the range 5 to +16V into MIDI Control Change messages (CC). MIDI messages coming into the MIDI input are merged with the MIDI controller messages generated by the A-192-1.

The 16 CV inputs can be assigned to MIDI control messages as 128 presets, which can be switched via an on-board 8-pin DIP switch (permanent) or via MIDI program change messages (temporary).

Additionally, the current state of the 16 inputs can be instantly sent as MIDI controller messages by pressing the "Snapshot Button."
