4ms Listen Four [USED:W0]

Name: 4ms Listen Four [USED:W0]
Brand: 4ms
SKU: 4MSLISFOUUSED-12507
Price: 25900 JPY
Availability: InStock

4ms

USED

¥25,900 (Tax excluded ¥23,545)

Stereo output mixer that can be chained and is easy to use

Input / Output Mixer Stereo/Panning

Format: Eurorack
Width: 10HP
Depth: 25mm
Current: 75mA @ + 12V, 62mA @ -12V

Manual pdf (English)

[This is a used product]
Warranty: None (only for initial defects within 1 week of receiving)
Accessories: Power cable, M3 screws, original box
Remarks:

Qty / qty

in stock. Used items may take 1-2 business days to ship. Not eligible for free overseas shipping

MUSICAL FEATURES

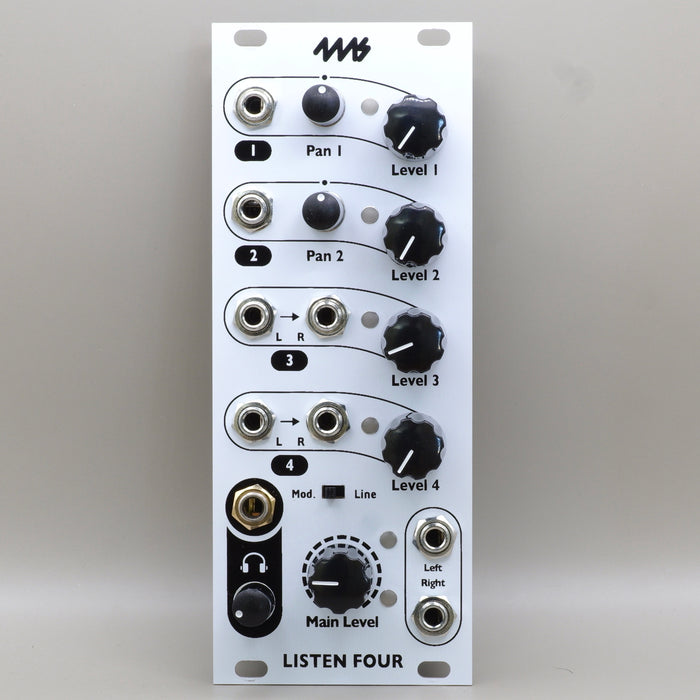

Listen Four is a 4-input stereo output mixer. It can also be used as the final output module in a modular system. You can increase the number of channels by daisy chain or connect to Wav Recorder from the back.

Two mono inputs (possible panning) and two stereo (or mono) inputs.
It has headphone output and main 3.5mm output, and the level can be adjusted individually.
Output can be switched between modular level and line level
Low noise, low crosstalk, low bleed
Mute is applied at startup to prevent popping sound when the power is turned on

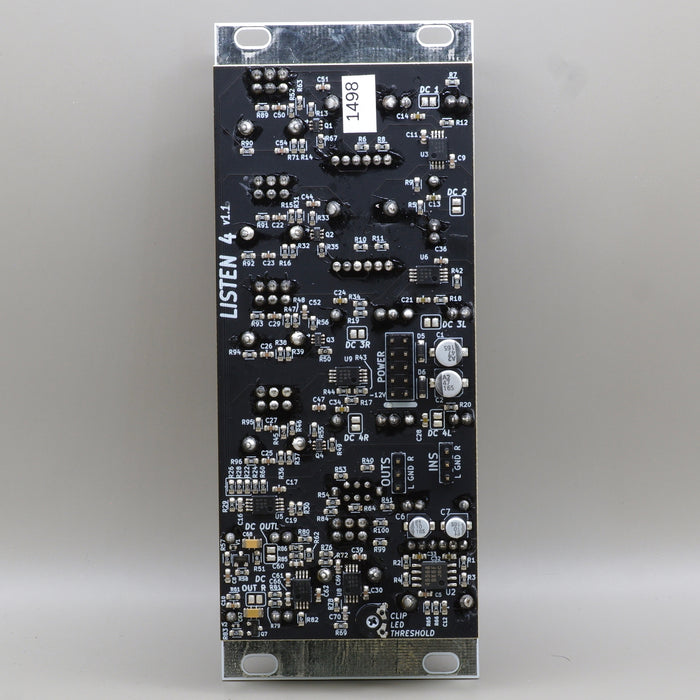

Multiple Listen Fours, Listen Four Quarters, Wav Recorder and Listen IOs can be connected via the rear input / output header pins
LEDs for level display on each channel and mix output

A chain between modules. Connect so that signals flow from OUTS to INS. Orient the cable so that L / R / GND match. In the above example, the output of LISTEN 4 on the right side of the image is input to LISTEN 4 in the middle, and a signal that mixes both can be extracted from the output of LISTEN 4 in the middle. Furthermore, the output of LISTEN 4 in the middle is connected to the input of the WAV Recorder on the back, so recording is possible.
* The chain has 2.54 mm intervals3-pin cableIs required
